| Brand Name : | Delta |
| Model Number : | SFA |
| Certification : | ISO9001 |
| Price : | USD1.0 SF6 Analyzer / set |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 100 sets SF6 Analyzer / month |
| Delivery Time : | Within 10 days after the order is confirmed |

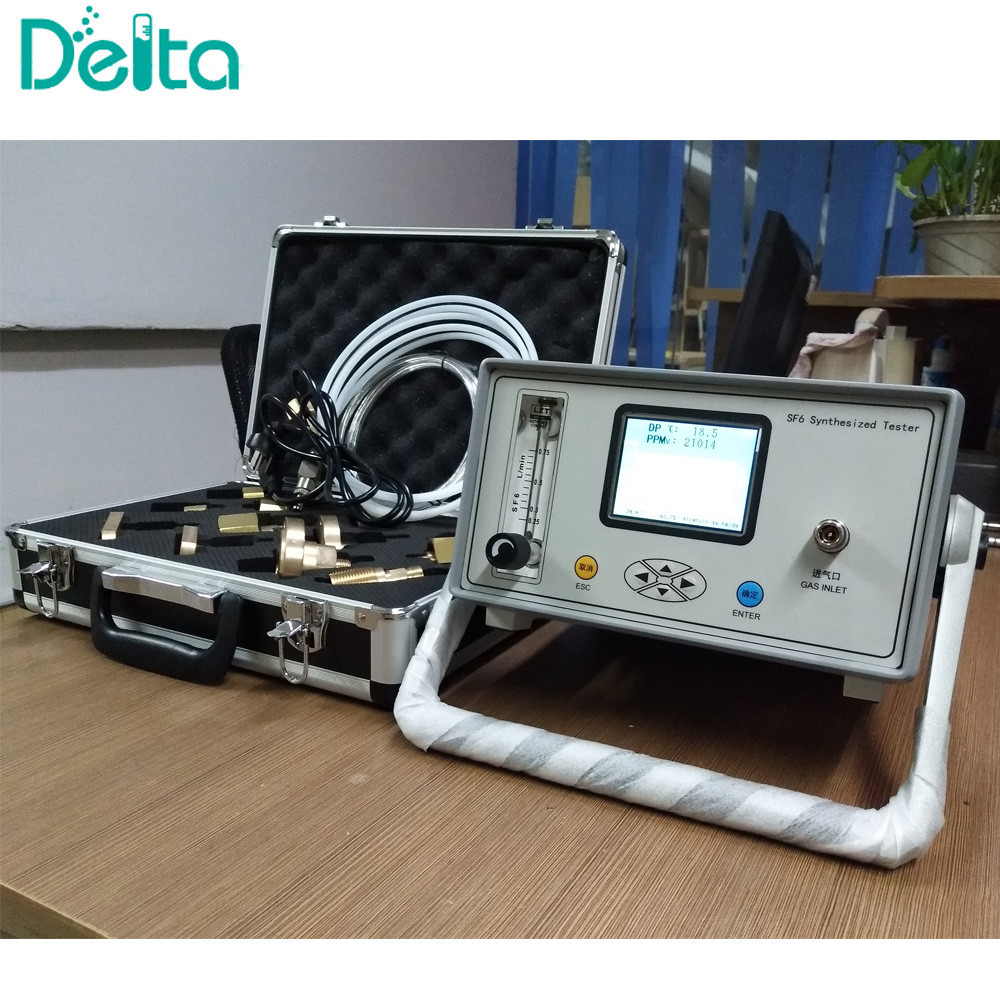

SFA Series Multi-functional SF6 Purity, SO2, H2S, CO, HF, CF4, N2, O2 Testing SF6 Analyzer
Brief Introduction:
SFA SF6 Analyzer can test dew point, micro-water content(ppm), SF6 purity, concentration of SO2, H2S, CO, HF, etc.
Main Features:
Main Parameters:
| Purity | Measuring range: 0%~100% | |
| Accuracy: ±0.5% | ||
| Measuring time: < 2min | ||
| Dew point | Measuring range: -80℃~+20℃ | |
| Accuracy: ±0.5℃(-80℃~-60℃) | ||
| Response time(+20℃) | 63% need 5S, 90% need 45S (-60℃~+20℃) | |
| 63% need 10S,90% need 240S (+20℃~-60℃) | ||
| H2S | Measuring range: 0~200ppm | |
| The minimum detectable amount: ≤0.1ppm | ||
| Accuracy: ±0.5% | ||
| Stability: 0~200ppm | ||
| Repeatability: ≤2% | ||
| SO2 | Measuring range: 0~200ppm | |
| The minimum detectable amount: ≤0.1ppm | ||
| Accuracy: ±0.5% | ||
| Stability: 0~200ppm | ||
| Repeatability: ≤2% | ||
| HF | Measuring range: 0~20ppm | |
| The minimum detectable amount: ≤0.01ppm | ||
| Accuracy: ±0.5% | ||
| Stability: 0~20ppm | ||
| Repeatability: ≤2% | ||
| CO | Measuring range: 0~1000ppm | |
| The minimum detectable amount: ≤1ppm | ||
| Accuracy: ±0.5% | ||
| Stability: 0~1000ppm | ||
| Repeatability: ≤2% | ||
| Temperature | -40℃~+60℃ | |
| Humidity | 0~100%RH | |
| Power supply | AC 220V | |
| Built-in rechargeable battery | ||
| Battery | Charging time: 20 hours; can work for 10 hours | |
| Weight | 5kg | |
| Dimension | 25cm*15cm*30cm | |
| Working temperature | -40℃~+80℃ | |



|
